Key Benefits at a Glance

• Housing with removable, mechanical and color coded terminals
• Communication monitoring
• Inputs for 2- and 3-wire sensors
• Addressing jack
• Power supply of outputs from the external auxiliary voltage
• Selectable supply to the sensors: External or from the module
• Function display for bus, external auxiliary voltage, internal sensor supply, inputs, and outputs
• Red LED per channel, lights up in the event of output overload
• Switchable lead breakage detection (outputs)

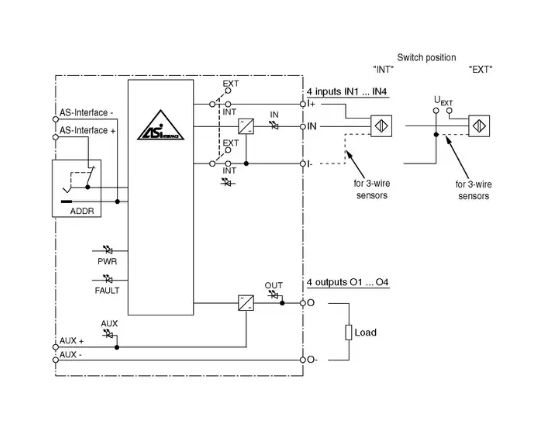

AS-Interface Slave 4 Input/4 Output AS-I version 3.0 Node type A/B node Ambient temperature -25 ... 60 °C , 4 inputs for 2- or 3-wire sensors (PNP) , DC IP20 มีไฟแสดงสถานะ Power , Fault , Input/Ouput
