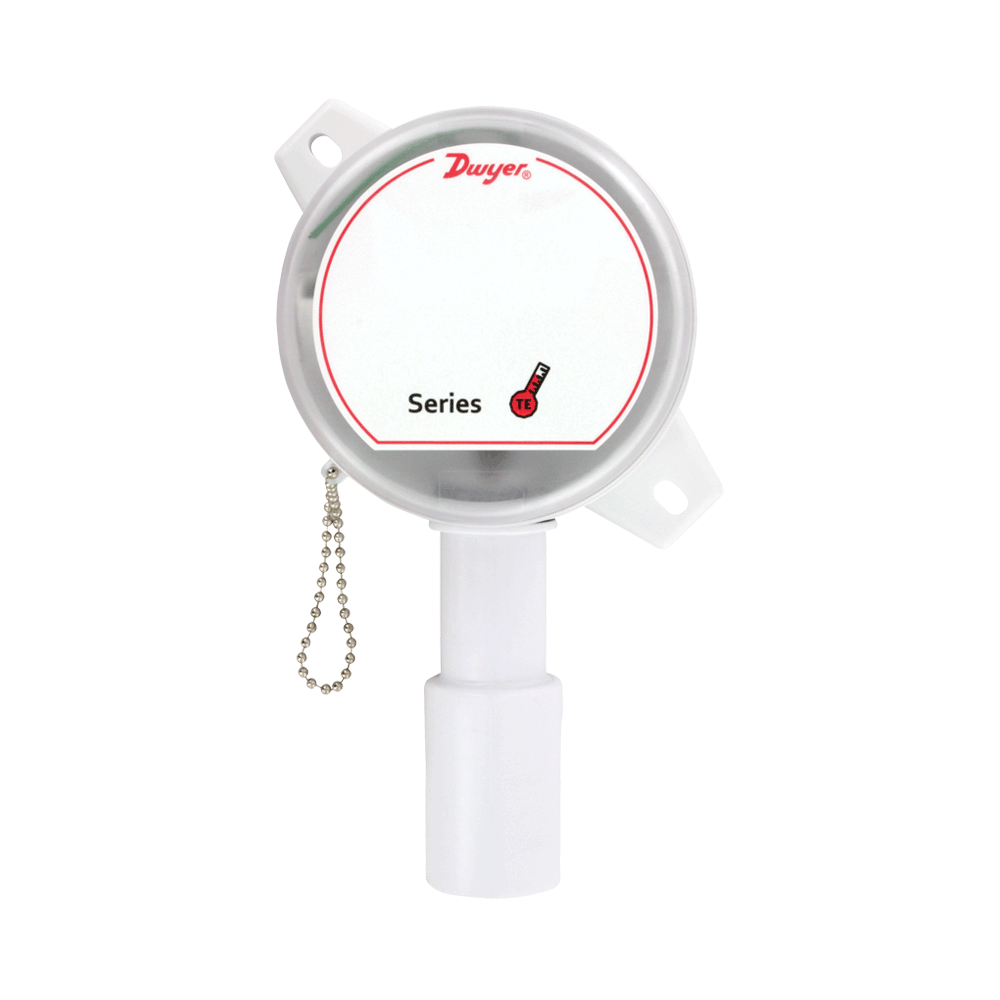

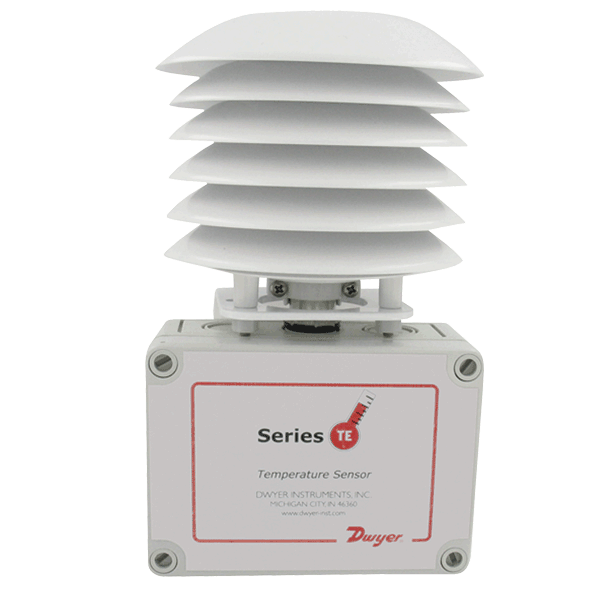

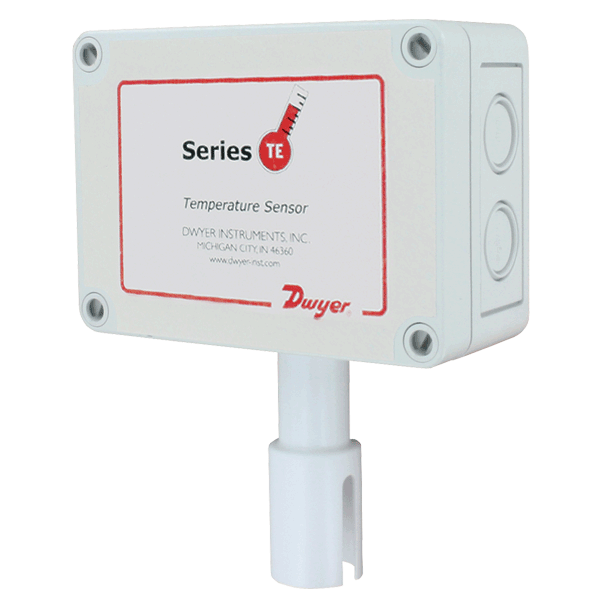

The Series TE-OND/TE-RND/TE-OSA Outdoor Air Temperature Sensors are offered in two different configurations to increase measurement accuracy by reducing radiated heat effects. For applications where the north side of the building is accessible, the TE-OND/TE-OSA can be used to protect against low levels of radiated heat. If the sensor must be mounted in direct sunlight or a more precise measurement is required, our six plate radiation shield mounts over the temperature probe. The TE-RND radiation shield models can be surface or pipe mounted. All models include removeable terminal blocks to simplify wiring.

Specifications

Outdoor Temperature
Accuracy : Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD
temperature sensor : DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
Housing Material : Polycarbonate.
Enclosure Rating : TE-OND/TE-RND: NEMA 4X (IP65); TE-OSA: NEMA 3R (IP54).

Models & Ordering
